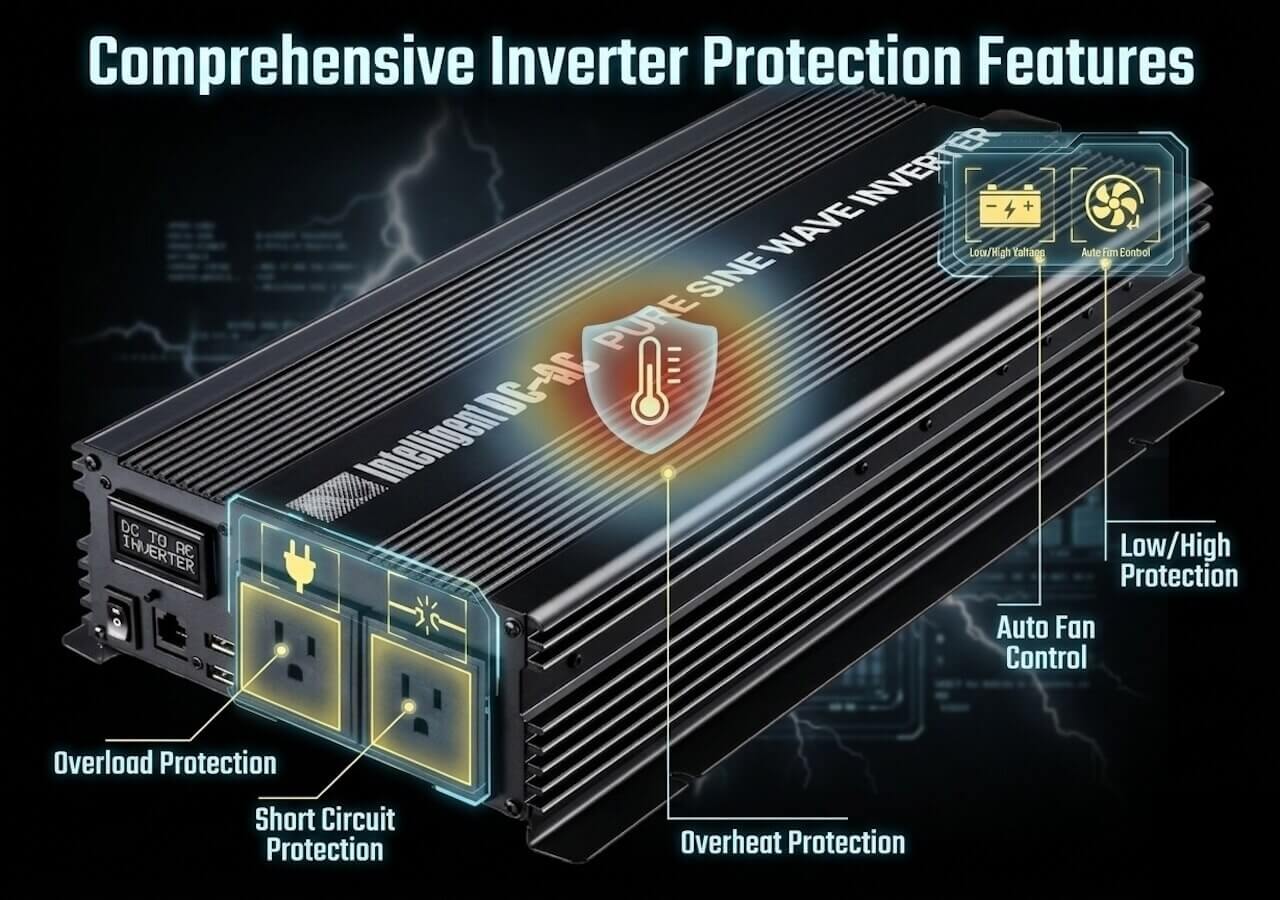

Comprehensive Inverter Protection Features

Power Inverter Protections – Why Safety Features Matter

Power inverters are critical components in many electrical systems including RV power systems, marine installations, off-grid solar systems, mobile service vehicles, and residential backup power systems. Because these systems rely on batteries and high electrical currents, proper protection mechanisms are essential to ensure safe and reliable operation.

Modern inverters integrate multiple electronic protection systems to safeguard both the inverter and connected equipment.

As a professional Taiwan inverter manufacturer, LinkChamp designs inverter products with comprehensive protection mechanisms to prevent damage, improve system reliability, and ensure long-term safe operation.

Why Inverter Protection Is Important

Power inverters handle significant electrical energy. Without proper protection circuits, abnormal conditions can cause serious issues such as:

• battery damage
• overheating
• electrical fires
• inverter component failure
• damage to connected appliances

Typical risks in inverter systems include:

For these reasons, high-quality inverters include multiple layers of electronic protection.

LinkChamp's pure sine wave inverter SN Series integrates advanced protection systems designed for demanding applications such as RV, marine, solar, and industrial mobile systems.

Key Protection Systems in Modern Inverters

Professional inverter designs include several safety mechanisms working together to monitor system conditions and shut down the inverter if abnormal situations occur.

Low Battery Voltage Protection

Low voltage protection prevents batteries from being excessively discharged.

Deep battery discharge can significantly shorten battery life, especially for lead-acid batteries.

Typical protection behavior:

When the voltage drops below the warning threshold, the inverter alerts the user (Pre-Alarm). If voltage continues to drop, the inverter automatically shuts down to protect the battery system. All of LinkChamp's inverters have pre-alarm and auto shutdown built-in, customized threshold can also be set in factory settings upon client's request.

High Voltage Protection

High voltage protection protects the inverter from excessive input voltage caused by charging system faults or incorrect battery configurations.

Typical shutdown thresholds include:

High voltage conditions can damage electronic components, making this protection essential for safe inverter operation. LinkChamp provides customized threshold from high voltage shudown as well upon client's request.

Overload Protection

Overload protection prevents the inverter from operating beyond its rated capacity.

If connected appliances exceed the inverter's continuous power rating, the inverter will trigger an alarm and eventually shut down.

Example ratings from the LinkChamp SN Series include:

Surge capability allows the inverter to temporarily support startup loads from appliances such as refrigerators or compressors.

Short Circuit Protection

Short circuits are among the most dangerous electrical faults.

Short circuit protection immediately shuts down the inverter output when a short circuit is detected, preventing:

• cable overheating
• inverter damage
• electrical fire risk

This protection is critical for systems installed in vehicles, boats, and mobile work equipment.

Over-Temperature Protection

Power inverters generate heat during operation. If the internal temperature becomes too high, thermal protection activates.

Typical protection behavior:

This protection prevents internal components from overheating and ensures long-term reliability. LinkChamp inverters also include intelligent fan control to maintain optimal cooling.

Reverse Polarity Protection

Incorrect battery wiring can occur during installation.

Reverse polarity protection helps prevent catastrophic inverter/battery damage when the battery is accidentally connected backwards. LinkChamp inverters incorporate fuse-based polarity protection to protect internal circuits from further damaging.

Optional RCD / GFCI Protection

For additional electrical safety, some inverter configurations support RCD (Residual Current Device) or GFCI protection. Both of LinkChamp's pure sine wave inverter SN Series and inverter charger SN-C Series provide this optional protection.

These devices protect users from electric shock by detecting leakage current. This is particularly important in environments such as:

• RV electrical systems
• marine applications
• outdoor installations
• mobile service vehicles

Intelligent Monitoring and Display

Advanced inverter designs include monitoring systems that allow users to easily check system status.

LinkChamp SN-LCD Series inverters feature an 8×2 smart LCD display that provides real-time information such as:

• input battery voltage
• AC output voltage
• system frequency
• internal temperature
• operating mode
• protection status

The display also indicates protection events using pre-alarm warnings and shutdown notifications, helping users quickly diagnose system conditions.

Advanced Protection with Smartphone App

Modern power systems increasingly require real-time monitoring and configurable protection settings. To address this need, LinkChamp developed the SN-BT Series, a pure sine wave inverter equipped with Bluetooth smartphone connectivity.

Using the dedicated mobile application available for iOS and Android, users can connect directly to the inverter and manage system settings from their smartphone.

This allows users to monitor system conditions and customize protection behavior to match their specific installation environment.

Real-Time Inverter Monitoring

Through the smartphone app, users can view detailed operating information in real time, including:

• battery input voltage
• inverter output wattage
• AC output voltage
• output frequency
• operating mode
• internal temperature

This real-time monitoring capability allows users to quickly identify abnormal conditions before they become critical issues. Typical information available through the app includes:

Customizable Protection Thresholds

One of the most powerful features of the SN-BT Series is the ability to adjust protection thresholds directly from the smartphone application.

Users can configure parameters such as:

• low voltage protection thresholds
• high voltage shutdown levels
• protection pre-alarm warnings
• operating modes
• cooling fan behavior
• energy-saving mode settings

This level of customization allows the inverter to be optimized for different battery types and applications such as:

The ability to fine-tune these protection settings helps maximize both system safety and battery lifespan.

Extended Control Range

Bluetooth communication allows a connection distance of up to 50 meters in open environments, providing convenient control and monitoring without requiring physical access to the inverter.

This is especially useful in installations such as:

• RV battery compartments
• marine engine rooms
• solar power equipment rooms
• service vehicle electrical cabinets

Why Smart Protection Matters

Traditional inverters provide fixed protection parameters. However, different applications require different protection behaviors depending on battery chemistry, system size, and load characteristics.

By integrating smartphone control, the LinkChamp SN-BT Series allows users to:

• monitor inverter performance remotely
• adjust safety thresholds
• optimize system protection
• maintain long-term reliability

This smart inverter architecture helps ensure the highest level of safety, flexibility, and system control for professional power applications.

Typical Applications for Protected Inverter Systems

Inverter protection systems are especially important in demanding environments such as:

In these environments, reliable protection systems significantly reduce maintenance issues and equipment failure.

Why Choose LinkChamp Inverters

When selecting an inverter, safety and reliability should be primary considerations.

LinkChamp inverters offer several advantages:

• comprehensive electronic protection systems
• stable pure sine wave output
• intelligent thermal management
• integrated monitoring display
• high surge capability
• durable aluminum housing
• 100% Made in Taiwan manufacturing

These features make LinkChamp inverters a trusted solution for professional and consumer applications worldwide.

Conclusion

Protection systems are a critical part of modern inverter design. Features such as low voltage protection, overload protection, short circuit protection, and thermal shutdown ensure safe operation and protect both the inverter and connected equipment.

LinkChamp's pure sine wave inverters integrate comprehensive protection mechanisms designed for real-world operating conditions in RV, marine, solar, and backup power systems.

By combining advanced safety features, high-quality components, and reliable engineering, LinkChamp inverters provide dependable power solutions for users who require both performance and safety.
